Installing The Left Hand Drive Shaft To The Transmission, Wheel Spindle And Link Arm

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

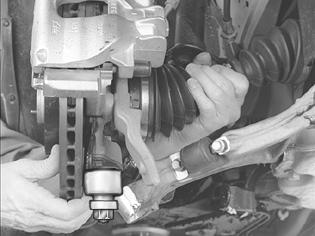

Fig 1: Identifying Removal Of Wheel Spindle From Control Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Take care not to damage the drive shaft seal in the transmission.

Press in the drive shaft so that the snap ring locates in the groove. Pull the constant velocity joint to check that the drive shaft is secure.

Install the wheel spindle on the control arm.

Install the lock nut loosely.
