Installing New Lock Nuts And Screws On The Steering Gear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

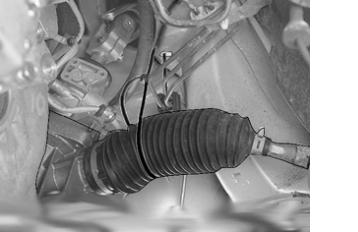

Fig 1: Identifying Steering Gear And Tie Strap
GLL109302Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the tie strap.

Installing new M10 lock nuts and screws on the steering gear.
