Installing And Tightening Front Suspension Components
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

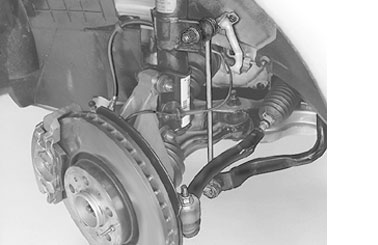

Tighten the drive shaft screw. Use a new screw. Counterhold using a crow bar in the brake disc. Tighten. See Tightening torque .
Install the nut for the anti-roll bar at the spring strut (left hand side only). Use a new lock nut .
NOTE:
Counterhold the ball joint pinion when tightening. This is so the ball joint boot does not turn.
