Installing The Air Conditioning (A/C) Compressor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

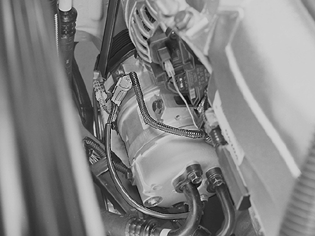

Install the 4 screws whilst the compressor is loose.
Raise the compressor and screw it into place.
NOTE:
Handle the compressor carefully. Ensure that there are no kinks in the air conditioning (A/C) pipes.
Connect the one-pin connector to the compressor magnetic clutch.
