Engine/Transmission, Installing: Finishing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

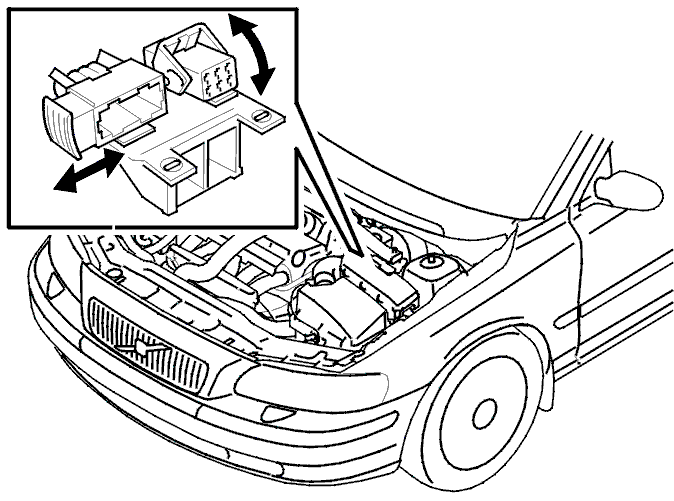

Fig 1: Heated Oxygen Sensor Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector to the pressure switch (Pressostat) in the drier bottle. Secure the wiring.

Tighten the lower screw on the cooler unit.

Connect the connectors to both the heated oxygen sensors (HO2S).

Fig 2: Identifying Splash Guard Under The Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the splash guard under the radiator
the splash guard under the engine
the front wheels. See Installing wheels
the battery negative lead. Also read Battery, disconnecting .
