Assembling The Spring Strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

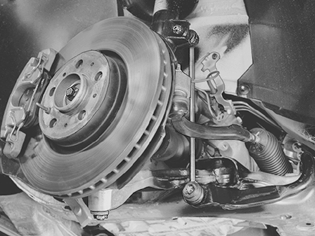

Fig 1: Identifying Wheel Hub Assembly And Components

GLL108999

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the tie rods. Use new nuts. Tighten to 70 Nm
the link rod to the anti-roll bar. Use new nuts. Tighten to 50 Nm . Counterhold with Tx27
the bracket for the brake pipe to the body.

Tighten

the nut for the ball joint and control arm. Tighten to 80 Nm . Counterhold using Tx40
the center screw in the drive shaft. Tighten to 50 Nm .
