Applies To All: Installing VVT-Control Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Clean the gasket faces. Note the cleanliness requirements above.

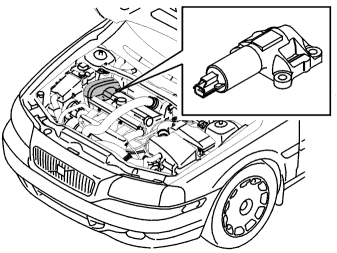

Fig 1: Identifying Variable Valve Timing (VVT) Control Valve
GLL103008Courtesy of VOLVO CARS OF NORTH AMERICA.

Install a new gasket  .

Install a new control valve. Tighten the control valve crosswise. Tighten to 10 Nm

Connect the connector.

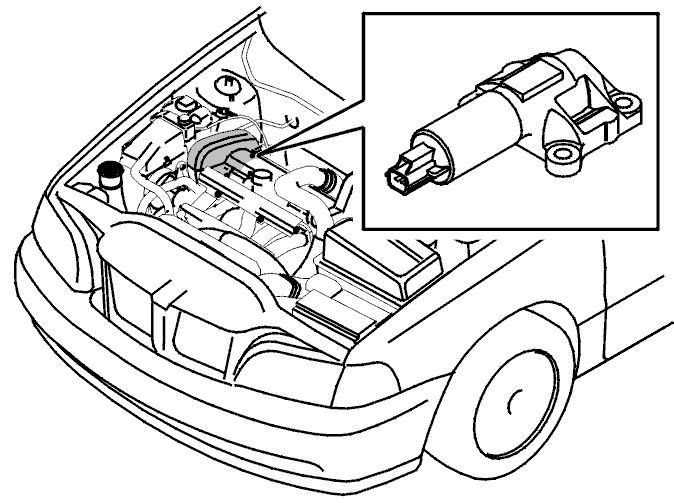

Fig 2: Identifying Upper Timing Belt Cover
GLL101021Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the upper timing belt cover.
