Removing The Timing Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

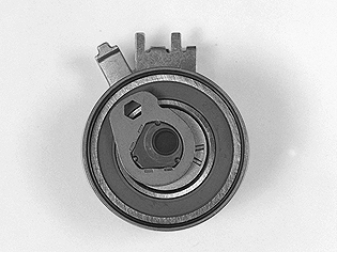

Fig 1: Belt Tensioner

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the belt tensioner.

Slacken off the center screw for the belt tensioner slightly.

Hold the center screw still. Turn the tensioner eccentric clockwise using a 6 mm Allen key to 10 o'clock.

Remove the timing belt from the tension pulley, camshaft pulley and water pump.

NOTE:

The component can be reused unless it has been subjected to abnormal mechanical stress, damage or oil contamination.

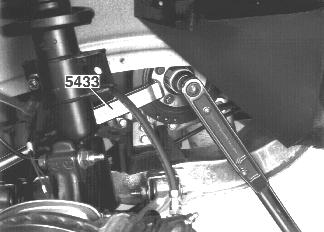

Fig 2: Identifying Vibration Damper & Counterhold 9995433

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the vibration damper.

Remove the oscillation damper. Use counterhold 9995433 . Work the oscillation damper loose.

Remove the timing belt
