Installing The Auxiliaries Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

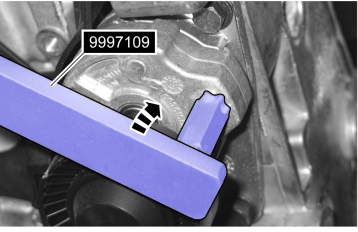

Fig 1: Identifying Belt And Special Tool 999 7109
GLL168788Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION:

Make sure that the belt is correctly seated in all the grooves on each pulley.

Turn the belt tensioner clockwise as much as possible.

9997109

Fit the belt.
