Removing Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

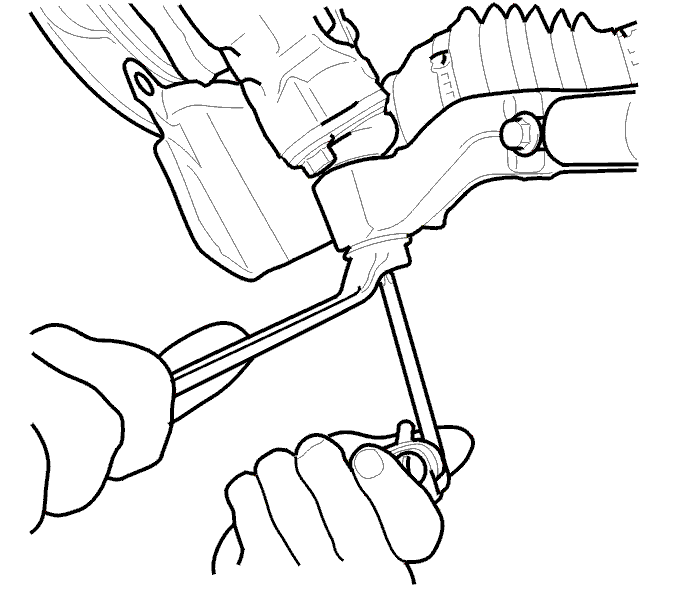

Fig 1: Removing Screw And Nuts For Steering Gear

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the front wheel
the nuts for the lower ball joints
the anti-roll bar links from the anti-roll bar
the center screw for the right-hand drive shaft
the screw and nuts for the steering gear
the screw for the front engine mounting
the torque rod including the mounting in the sub-frame.
