Installing The Oil Pan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

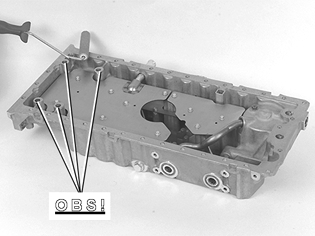

Fig 1: Applying Liquid Gasket To Oil Pan

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply liquid gasket 116 1059-9 to the sump. Use roller 9511205 .

NOTE:

Also apply liquid gasket around the holes for the screws for the torque rod.

Fig 2: Applying Liquid Gasket To Oil Pan

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

new O-rings
the oil sump. Secure the oil sump loosely using a few screws
the remaining screws loosely.

Fig 3: Oil Pan Screw Tightening Sequence

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the oil pan against the transmission. Tighten the screws (1), (2), (3) and (4). Tighten to 3 Nm .

Tighten the screws (5). First tighten to 25 Nm . Then tighten to 48 Nm .

Tighten all screws in the oil pan joint. Tighten to 17 Nm . Start at the transmission and continue forwards in pairs.

Connect the oil cooler to the sump. Use new O-rings.

Install the screw for the bracket for the fuel line.

Install:

a new oil filter
the oil plug with a new gasket.
