Oil Sump Replacement: Preparation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

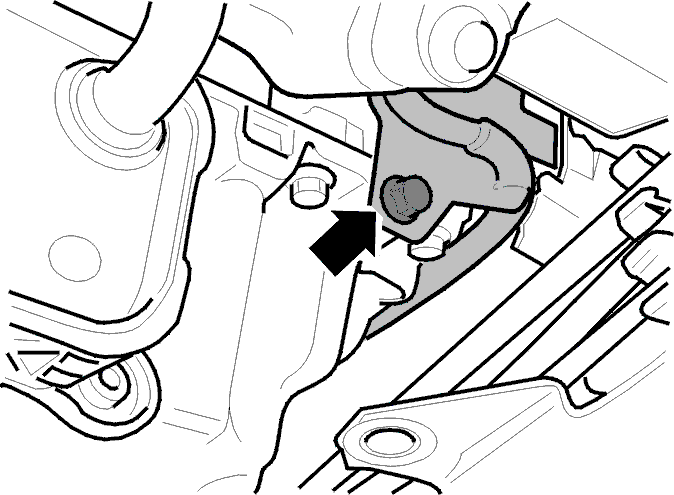

Fig 1: Identifying Fuel Line Bracket And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the oil dipstick and its pipe.
the splashguard under the engine.

Drain the engine oil and remove the oil filter.

Release the oil cooler from the sump. Hang up at the rear.

Remove the screw from the bracket for the fuel line.
