Removing Sub-Frame: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Bolts, Washers And Brackets In Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position a lifting table under the sub-frame
Remove the screws holding the sub-frame brackets to the bodywork on both sides
Remove the four screws from the sub-frame
Carefully lower the sub-frame.
NOTE:
Ensure that the steering gear screws are released from the sub-frame.

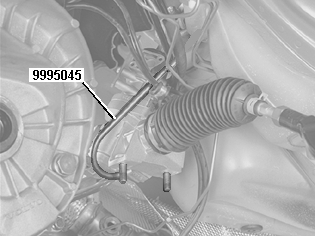

Fig 2: Hanging Steering Gear From Hook 999 5045

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hang the steering gear from a hook 9995045 so that the lower steering shaft does not come apart.
