Installing Lifting Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Installing lifting tools

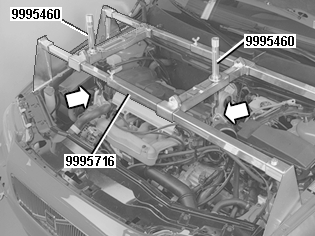

Fig 1: Identifying Special Tool 999 5716 (Lifting Beam) And Special Tool 999 5460 (Lifting Hook) Installed On Engine Lifting Eyelet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install lifting beam 9995716 . Install lifting hooks 9995460
Lift the engine to relieve the load on the engine pads.

Removing the charge air pipe and hose (6-cylinder turbocharged engines only)

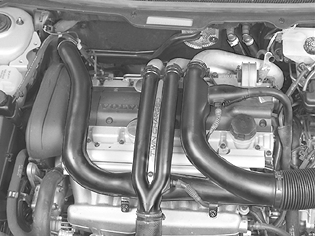

Fig 2: Charge Air Pipes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the 5 hose clamps for all the charge air pipes.

Remove the 2 screws from the charge air pipe on the intake manifold.

Separate all the charge air pipe. Leave the pipes lying on the spark plug cover.

Removing the spark plug cover

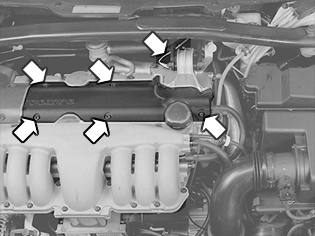

Fig 3: Identifying Spark Plug Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the screws for the spark plug cover
the cover
the ground strip screw.

Applies only to turbocharged engines:

Remove the screws.

Lift up the delivery lines. Remove the spark plug cover.

Installing the lifting lug

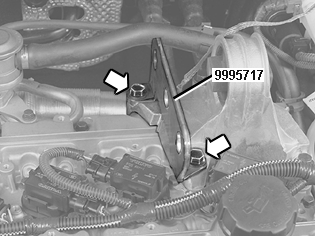

Fig 4: Identifying Special Tool 999 5717 (Lifting Lug) And Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 screws at the engine mounting.

Install lifting lug 9995717 .
