Removing The Front Engine Pad Lower Screw

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

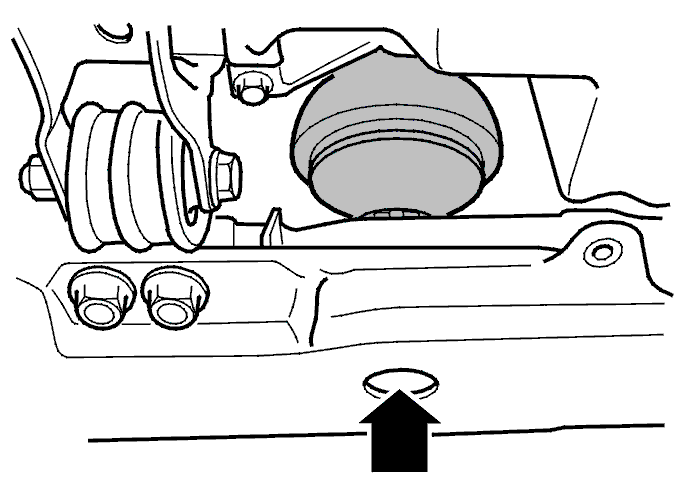

Fig 1: Front Engine Pad Lower Screw
GLL107861Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the lower screw for the front engine pad.
