Removing The Delivery Line For The Steering Gear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

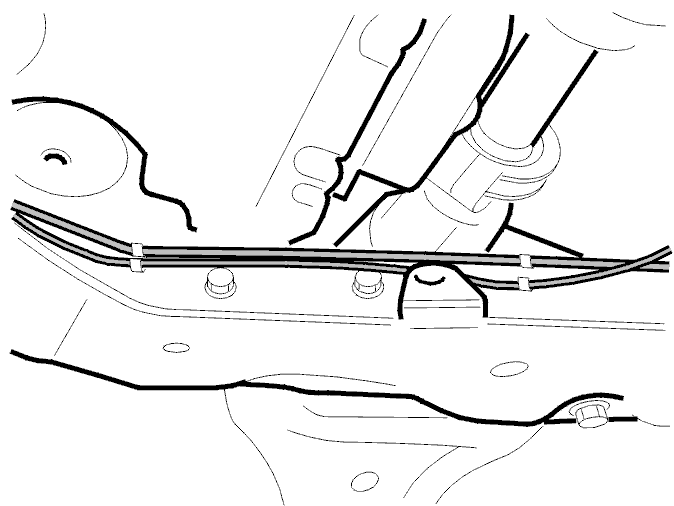

Fig 1: Identifying Oil Pipe And Clamps For Steering Gear
GLL105498Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the delivery line for the steering gear from the snap fastener on the sub-frame. Remove any fuel line to the engine block heater.
