Pressing Out The Bushings

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

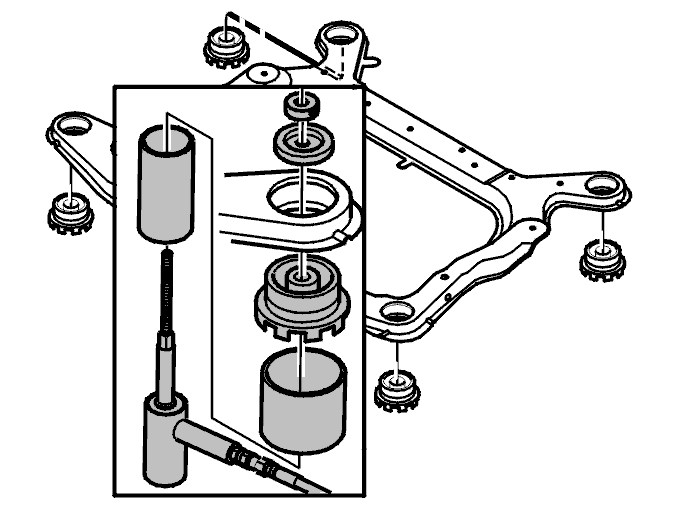

Fig 1: Identifying Special Tools To Press Bushings

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the hydraulic tool and press sleeve as illustrated.

Press the bushings out of the sub-frame.

NOTE:

It is arbitrary which of tools 999 5575, 999 5576 and 951 2564 is used.

Fig 2: Identifying Bushings

Courtesy of VOLVO CARS OF NORTH AMERICA.
