Marking For The Bushing On The Sub-Frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

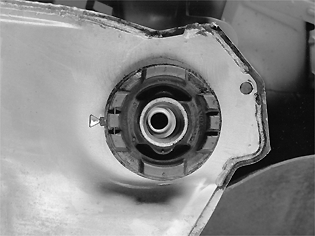

Fig 1: Identifying Marking For The Bushing On The Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the hole for the bushing in the sub-frame.

Press out the bushing by hand.

CAUTION:

The markings on the bushing and sub-frame must be positioned opposite each other.
