Lifting The Sub-Frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

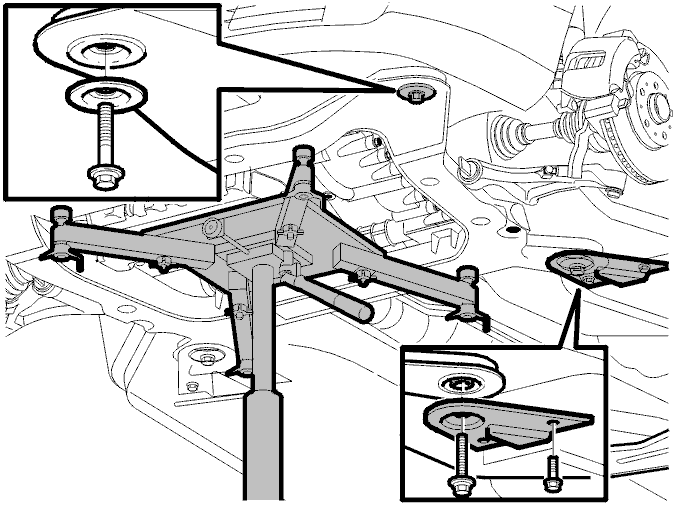

Fig 1: Identifying Lifting Table, Sub-Frame Brackets, Screws And Washers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift the sub-frame up completely.

At the same time locate the mounting screws for the steering gear on the sub-frame.

Install the sub-frame brackets loosely together with the washers.

Install the four screws for the sub-frame. Use new screws. Do not tighten yet .

First tighten the screws on the left side of the sub-frame. Tighten to 105 Nm . Angle tighten 120° . Then tighten the right-hand side to the same values as the left side.

Finally tighten the screws for the brackets on both sides. Tighten to 50 Nm .

Install the engine block heater (if applicable) on the left front mounting for the sub-frame.

CAUTION:

Tighten the left-hand side first. The sub-frame guides are on the left-hand side.
