Installing The Air Intake Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

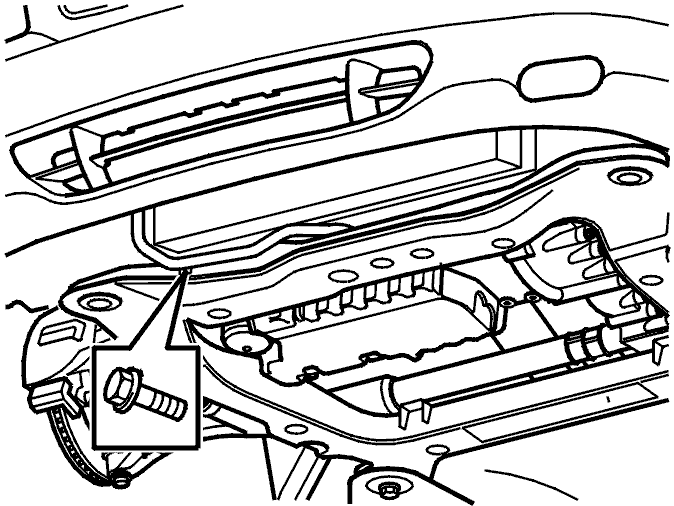

Fig 1: Identifying Screw For Cable Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the screw for the cable duct
the evacuation pipe on the sub-frame.

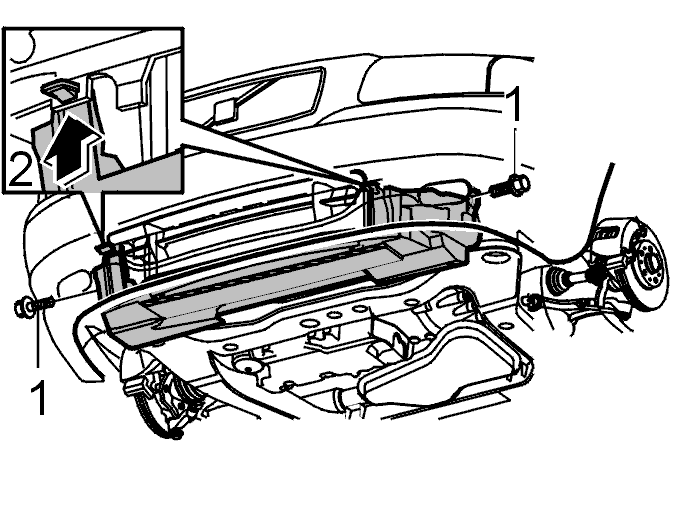

Fig 2: Air Baffle

Courtesy of VOLVO CARS OF NORTH AMERICA.

the air baffle.
