Auxiliaries Belt / Belt Tensioner, Replacing: Finishing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

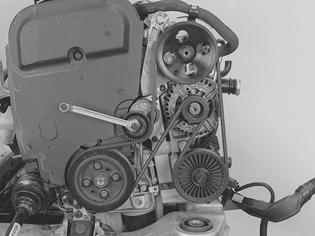

Fig 1: Identifying Auxiliaries Belt And Pulleys

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a 15 mm wrench and turn clockwise as far as possible to relieve the load.

Install the belt in the following order:

Crankshaft
Air conditioning (A/C) compressor
Belt tensioner
Generator (GEN)
Servo pump.

Install the servo reservoir.

Test the function.

Fig 2: Identifying Trigger Wheel, Camshaft Position (CMP) Sensor Housing, Air Cleaner (ACL) Cover, Intake Manifold Between Electronic Throttle Module (ETM) & Engine Stabilizer Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.
