Installing The Tensioner / Damping Unit
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Check that there is no visible leakage.

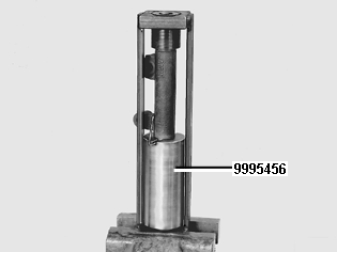

Press the tensioner/damping unit together with tool 9995456 . Position the tensioner/damping unit in the tool and screw the tool center nut to the bottom. Wait until it is compressed and then install a lock pin in the piston.
NOTE:
The tensioner damping unit must be replaced if there is leakage or there is no resistance when pushed in or if it cannot be pushed in.
Install the tensioner/damping unit. Tighten to 25 Nm .
