Installing The Manifold

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

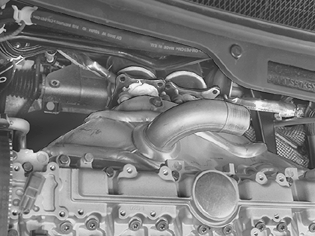

Fig 1: Identifying Heat Deflector Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

new gaskets.

Lubricate the studs at the exhaust ports and the flanges on the manifold using paste P/N 116 1408.

Install

the manifold
the washers and new nuts that hold the manifold onto the cylinder head
the heat deflector plate above the manifold
