Separating The Exhaust System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

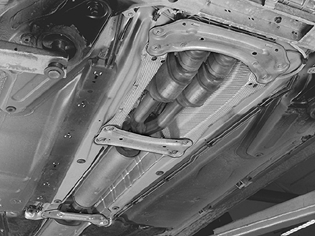

Remove
- the 8 nuts at the front exhaust system connection to the turbocharger exhaust bends.
- the first mounting bracket for the exhaust system downstream of the catalytic converter from the body.
- the front SIPS member from the body.
- the brake pipe from the holders on the SIPS member.
Press the exhaust system back so that there is 60-70 mm of play at the branching downstream after the turbocharger.
HINT: Use a mobile jack with universal plate 9995972 as a support.
Remove the gaskets.
Seal the openings at the exhaust system.
