Installing The Rear Camshaft Seal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

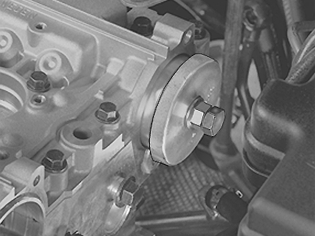

Use drift 9995450 .
Lubricate the surface of the seal that the camshaft rotates against.
Press in the seal until the drift bottoms out.
NOTE:
If there are wear grooves on the camshaft, the seal can be pressed in another 2 mm by reversing the tool's sleeve.
