Installing The Fuel Rail

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

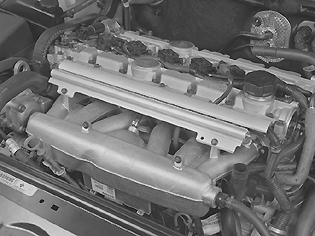

Fig 1: Removing/Installing Fuel Rail

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the fuel rail. Use new screws. Tighten to 10 Nm . Press the quick-release connector for the fuel pressure line until there is an audible click.
the clamps holding the injector wiring and the positive cable to the rear edge of the cylinder head.
the protective cover over the nozzle connectors.
the upper coolant hose to the cylinder head/radiator. Tighten the clamp.
