Installing The Front Camshaft Seal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

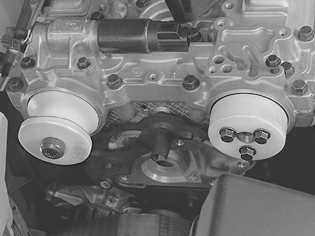

Use drift 9995718 for camshaft with variable valve timing unit and drift 9995719 for camshaft without variable valve timing unit.
Lubricate the surface of the seal that the camshaft rotates against.
Use the variable valve timing unit / timing belt pulley mounting screws. Tighten the screws until the drift bottoms out.
