Installing The Cylinder Head

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

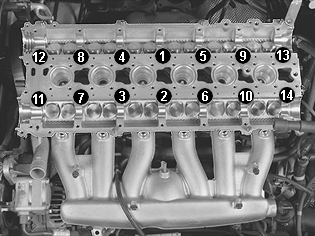

Fig 1: Cylinder Head Screws Tightening Sequence

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install a new cylinder head gasket.

Install the cylinder head. Use new screws.

Lubricate and install all the screws.

Tighten the screws in the order illustrated.

Tighten the screws in the following order.

1. 20 Nm .

2. 60 Nm .

3. Angle tighten 130° . Use a bevel protractor 9512050 .
