Installing The Camshaft Covers

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

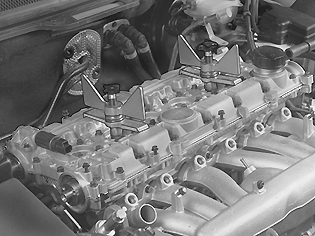

Fig 1: Removing/Installing Camshaft Cover/Cylinder Head

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the camshaft lobes, the camshaft bearing surfaces and the valve lifters.

Install the camshaft cover.

Install press tool 9995454 (2x).

Tighten the camshaft cover screws alternately, keeping it parallel to the cylinder head with the press tools.

Install all the screws and tighten.

Install the variable valve timing solenoid with a new gasket.

Remove the press tools.

Install the spark plugs. Tighten to 30 Nm .
