Compressing The Tensioner / Damping Unit
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

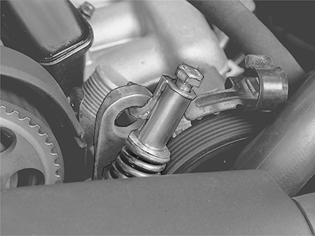

Assemble tool 9995750 . Install the tool between the lever pulley and the lifting lug at the servo pump.
Slacken off the screw in the tool so that there is clearance of approximately 10 mm between the screw head and the tool.
Allow the tool spring to compress the tensioner / damping unit.
