Removing Components From Turbocharger (TC)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

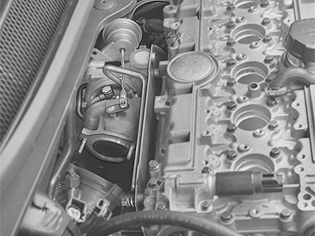

Fig 1: Identifying Turbocharger Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the heat deflector plate above the manifold
the upper engine coolant pipe. Place it to one side
the oil pressure pipe for the turbocharger (TC)
the pipe screw at the lower coolant pipe for the turbocharger (TC). Put the pipe to one side
the nuts and washers holding the manifold to the cylinder head.

Lift off the turbocharger and manifold. Carefully put them on top of the transmission.
