Installing The Fuel Rail

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

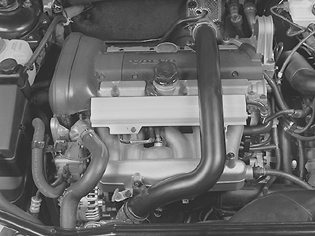

Fig 1: Fuel Rail And Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the fuel rail. Use new screws. Press the quick-release connector for the fuel pressure line until it clicks. See Fuel line, lock
the clamp for the injector wiring at the rear of the cylinder head
the protective cover over the injector connectors
the charge air pipe over the engine. Tighten the pipe using the three screws on the engine. Tighten the clamps.
