Cylinder Head/Gasket, Replacement: Installation: Cleaning
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Use a fume hood or extractor when using gasket solvent

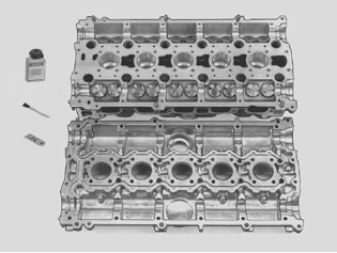

Clean the gasket faces for:
- the manifold. Check that the studs are tightened
- the coolant bypass channel
- the thermostat housing
- the intake manifold
- the cylinder block
- camshaft cover.
Blow the oil ducts clean.
NOTE:
Use a razor blade or a gasket scraper and gasket solvent P/N 1161 440.
