Applying Liquid Gasket
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Install new O-rings around the spark plug wells at the cylinder head.

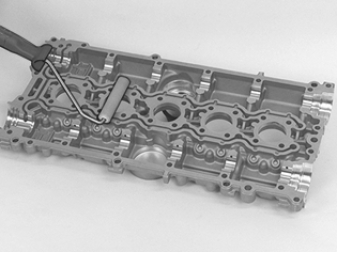

Apply liquid gasket 1161 059 to the camshaft cover.
Use roller 9512767 . The surface must be covered without any excess .
NOTE:
Make sure that no liquid gasket ends up in the oil channels.
