Installing The Sealing Ring
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Only Volvo approved engine oil may be used. Grease must not be used at all. It attracts dirt and results in the build up of coke.
Lubricate the sealing ring mating surface against the cylinder block and the lips of the seal.
Thread the seal onto the bevelled part of the inner section of 9997174 with the felt side of the seal outward.

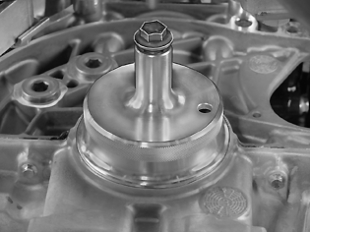

Screw the drift onto the crankshaft (2 screws) of the flywheel.
Pull in the seal with the outer part of the drift, 9997174 , using the screw in the center of the tool. The seal is in place when the outer drift bottoms against the inner drift. Remove tool 9997174 . Scrap the old flywheel screws.
