Installing The Sealing Ring
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Only Volvo approved engine oil may be used. Grease must not be used at all. It attracts dirt and results in the build up of coke.
Lubricate the sealing ring mating surface against the cylinder block and the lips of the seal.

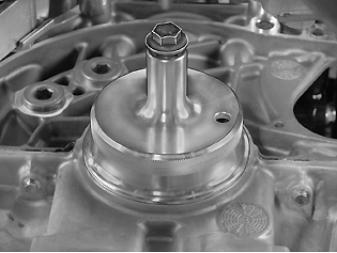

Thread the seal onto the beveled section of the inner section of tool 9997174 with the felt side of the seal outwards. Install the drift on the crankshaft, 2 x screws, for the flywheel. Pull in the seal using the outer section of the drift: 9997174 using the screw in the center of the tool. The seal is in position when the outer drift bottoms out against the inner drift. Remove the tool:9997174 . Discard the old screws for the flywheel.
