Turbocharger (TC) control system B6284T: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

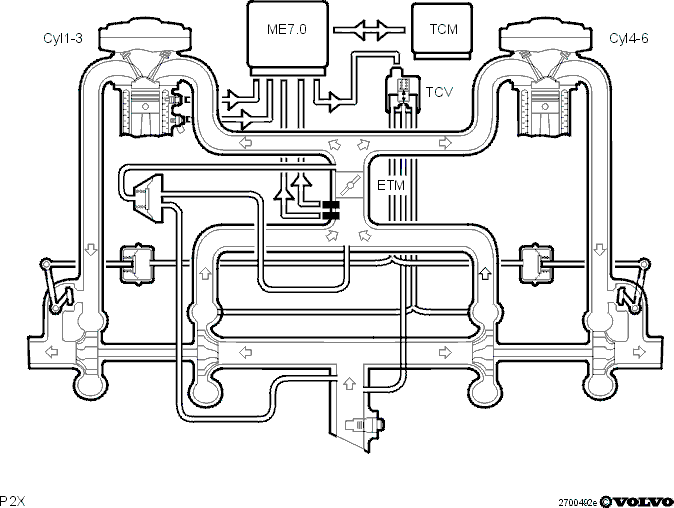

Fig 1: Identifying Turbocharger (TC) Control System B6284T

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turbocharger (TC) boost pressure is Controlled By The Boost Pressure Control (BPC) valve whose pressure regulators are affected by the pressure from the turbocharger (TC). The Engine Control Module (ECM) receives information about current throttle angle, this in turn affects the boost pressure control. The Engine Control Module (ECM) affects the controlling pressure using the turbocharger (TC) control valve.

When the pressure increases the Boost Pressure Control (BPC) valve pressure regulators Are Affected. When boost pressure has increased to the maximum permissible value the Boost Pressure Control (BPC) valves open and part of the exhaust gases bypass the turbocharger (TC) turbines which limits the boost pressure. Turbocharger (TC) control is constant as a combination between the throttle angle and the turbocharger (TC) control valve opening to obtain the maximum calculated torque.
