Removing The Camshaft Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

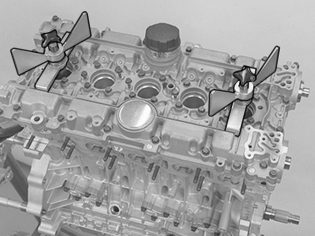

Fig 1: Camshaft Cover And Variable Valve Timing Unit Control Valve

GLL108846

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the variable valve timing (VVT) solenoid
spark plugs for cylinders 1 and 5.

Install tool 9995454 (2 pcs.) with 2-3 mm gap to the camshaft cover.

Ensure that the screw in the spark plug well is fully tightened.

Remove all the screws securing the camshaft cover to the cylinder head.

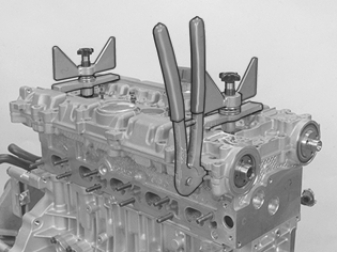

Fig 2: Camshaft Cover With Pliers At Stop Lugs

GLL108847

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use pliers 9995670 to lift the cover from the cylinder head.

Install the pliers at the stop lugs. Start with cylinder 1 and work alternately backward.

Slacken off the wing nuts approximately 2 turns. Repeat the procedure with the pliers.

Fig 3: Identifying Camshaft Seal Removal

GLL108980

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully press the camshaft seals free.

NOTE:

Be very careful to not damage the sealing surfaces on the camshafts.

Fig 4: Arranging/Tagging Removed Valve Lifters For Re-Installation

GLL108982

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

tool 999 5454
the camshaft cover
the camshafts.

Lift out the tappets. Mark up the tappets so that the original positions can be established.
