Fixing The Crankshaft Position
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Remove
- the mounting screws for the starter motor. Pull off the starter motor. Place the starter motor to one side
- the blind cover plug and the seal washer.
Turn the crankshaft slightly clockwise .

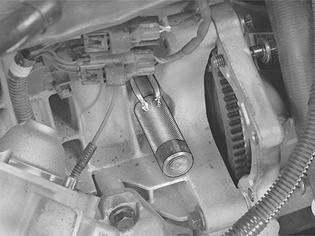

Install the crankshaft stop 9995451 . Ensure that it bottoms out against the engine block.
Turn the crankshaft counterclockwise until it stops against the crankshaft stop.
Check that the marking on the crankshaft timing gear pulley corresponds with the marking on the oil pump.
