When The Correct Valve Clearance Is Reached
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Remove

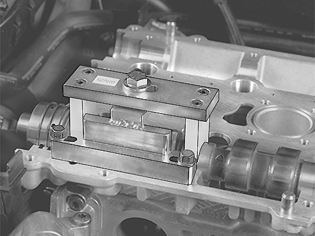

- the press tool 999 5765
- the camshaft
- the valve lifters.
NOTE:
Carefully mark the valve lifters so that exact reinstallation can be carried out.
| For example: | Intake side: | I1, I2, I3...... 12. |
| Exhaust side: | A1, A2, A3...... 12. |
Repeat the procedure for measuring the valve clearance for all cylinders on both the intake and exhaust sides. See Checking the valve clearance .
