Applying Liquid Gasket

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

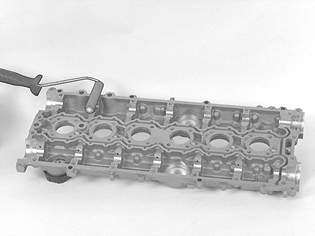

Fig 1: Applying Liquid Gasket To Camshaft Cover
GLL103877Courtesy of VOLVO CARS OF NORTH AMERICA.

Wipe the oil film off the mating surfaces on the camshaft cover and cylinder head.

Install new O-rings around the spark plug wells at the cylinder head.

Apply liquid gasket 1161 059 on the camshaft cover. Use roller 9512767 .

NOTE:

The surface must be completely covered without any excess.

CAUTION:

Ensure that no liquid gasket gets in to the oil ducts.
