Setting Up The Engine In Test Mode

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

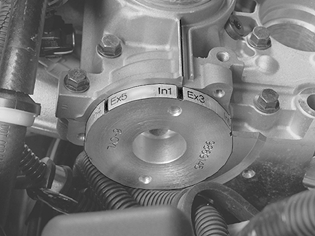

Fig 1: Installing Tool 999 5755 At Rear Edge Of Intake Camshaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install tool 9995755 at the rear edge of the intake camshaft.

Turn the crankshaft in the direction of engine rotation (clockwise) until the marking on the tool ("In1/Ex3") is opposite the thin flange running straight over the entire top of the cylinder head.

Remove all plugs from the test holes.

NOTE:

If the crankshaft is turned to far, it is essential that it is turned back at least a quarter of a turn so that it can then be turned clockwise to the correct position.
