Preparations For Adjusting The Timing Belt
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

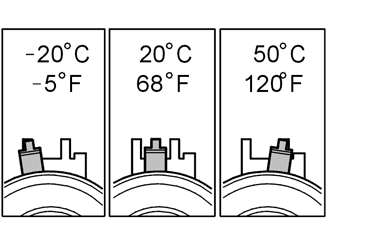

This setting is done on a cold engine. A suitable temperature is approximately 20°C/68°F . At higher temperatures, for example if the engine is warm or ambient temperature is higher, the indicator assumes a position farther to the right. The illustration shows the indicator position at different engine temperatures.
