Variable Valve Timing Unit, Checking And Adjusting: Tightening

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

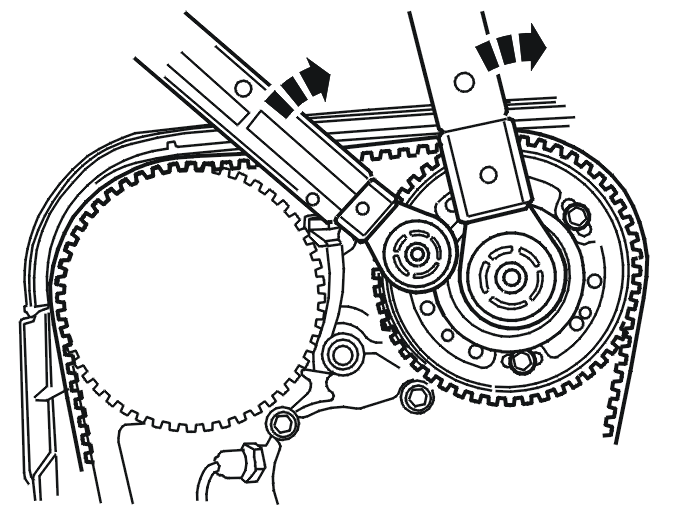

Fig 1: Identifying Center Plug In Variable Valve Timing Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Undo the 3 timing gear pulley screws slightly. Install the center plug in the variable valve timing unit. Tighten following Summary of tightening torques for specific components .

Hold the center plug in place with 25 Nm while the 3 screws on the camshaft timing gear pulley are tightened. See Summary of tightening torques for specific components . This is to ensure that the variable valve timing unit is in its end position when the timing gear pulley is fastened.
