Installing The Camshaft Variable Valve Timing Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

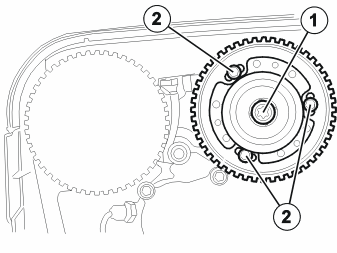

Fig 1: Camshaft Variable Valve Timing Unit Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Oil the center screw before installation.

Press the variable valve timing unit/timing gear pulley onto the camshaft. Install the center screw (1) that holds the variable valve timing unit to the camshaft. Tighten slightly.

Loosen but do not remove the screws (2) holding the timing gear pulley to the variable valve timing unit. Turn the timing gear pulley so that the screws at the oval holes are in the center position and then tighten the screws (2) slightly.

Turn the variable valve timing unit clockwise to its stop so that the unit is in its end position. Install the upper timing cover.
