Installing The Camshaft Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

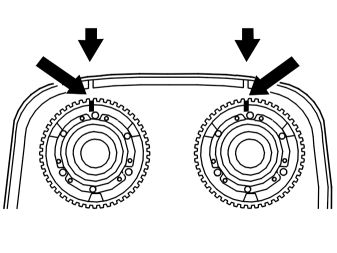

Fig 1: Identifying Timing Gear Pulley & Upper Timing Cover Markings Aligned

Courtesy of VOLVO CARS OF NORTH AMERICA.

Undo the center screw and continue turning clockwise until the timing gear pulley marking aligns with the marking on the upper timing cover.

Tighten the center screw in the variable valve timing unit.

Tighten, see: Summary of tightening torques for specific components .
