Final Check

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

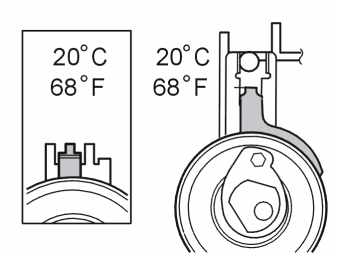

Fig 1: Belt Tensioner Indicator In Center Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the engine 2 revolutions.

Then check that the belt tensioner indicator is in the center position. If not, it must be adjusted so that the indicator is in the correct position described in a previous work element.
