Installing And Adjusting The Variable Valve Timing Unit/Gear Pulley On The Camshafts: Tightening

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

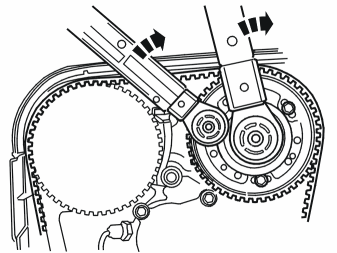

Fig 1: Holding Center Plug At While Tightening The Camshaft Timing Gear Pulley Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the 3 timing gear pulley screws slightly (applies to both timing gear pulleys).

Install the center plug in the variable valve timing unit. Tighten. See: Summary of tightening torques for specific components .

Hold the center plug at 35 Nm at the same time as tightening the 3 x screws on the camshaft timing gear pulley to: Summary of tightening torques for specific components .

This is to ensure that the variable valve timing unit is in its end position when the timing gear pulley is tightened.

Tighten the 3 screws on the timing gear pulley for the exhaust camshaft. Tighten Summary of tightening torques for specific components

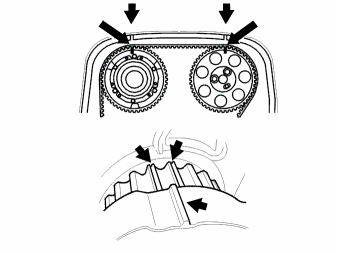

Fig 2: Identifying Timing Markings And Belt Tension

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

See 9995452 from the rear of the camshafts
See 9995451 . install new plugs with new sealing washers. Tighten. See: Summary of tightening torques for specific components .

Install the deflection limiter washer on the piston rod for the tensioner/damping unit.
