Intake Pipe/Gasket, Replacement: Preparation: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Drain the fuel line. See Fuel system pressure release .

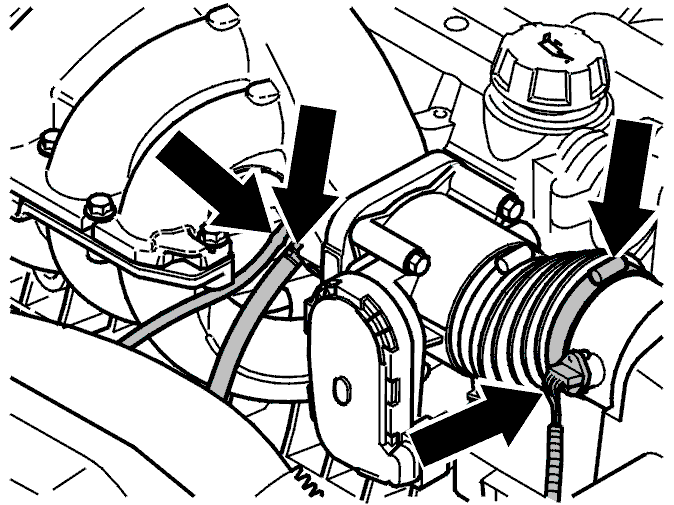

Fig 1: Identifying Throttle Unit, Connector, And Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Only applies when removing and installing the intake manifold

Remove the vacuum hoses from the upper intake manifold.

Disconnect the connector for the electronic throttle module.

Slacken off the hose clamp for the inlet hose at the air cleaner (ACL) housing.
