Installing Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

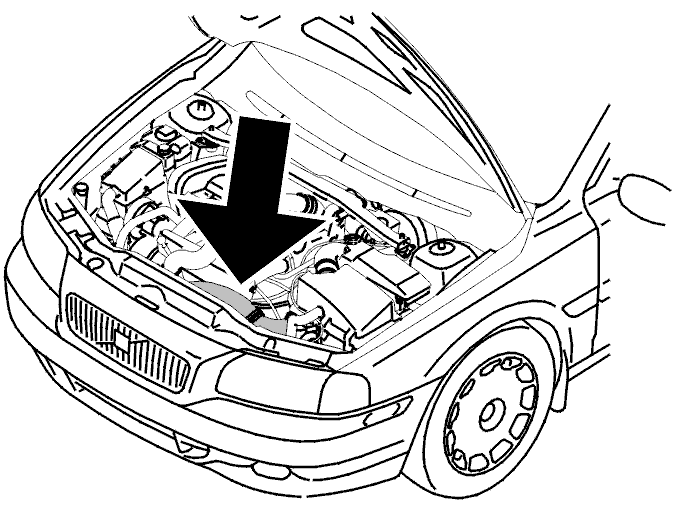

Fig 1: Identifying Air Intake Between Front Cover Plate And Air Cleaner Housing
GLL103011Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the charge air pipe between the electronic throttle module (ETM) and the charge air cooler (CAC).

NOTE:

Heat the pipe at the connections to facilitate installation.

Install the intake pipe between the front cover plate and the air cleaner (ACL) housing.
